Isfahan University of Medical Sciences

Science Communicator Platform

Stay connected! Follow us on X network (Twitter):
Share By
Fabrication of Porous Mg-Zn Scaffold Through Modified Replica Method for Bone Tissue Engineering Publisher

Summary: Research suggests a new magnesium-zinc scaffold for tissue engineering gets stronger with more metal powder and ethanol, boosting support for bone repair. #TissueEngineering #Biomedical

Aghajanian AH1 ; Khazaei BA1 ; Khodaei M2 ; Rafienia M3
Authors

Source: Journal of Bionic Engineering Published:2018


Abstract

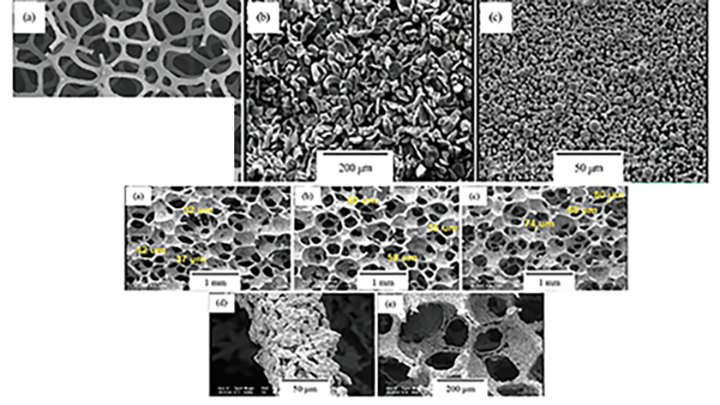

Biodegradable scaffolds are essential parts in hard tissue engineering. A highly porous magnesium-zinc (Mg-Zn 4 wt.%) scaffold with different Mg-Zn powder to liquid media ratios (50 wt.%, 70 wt.% and 90 wt.%) and different concentrations of ethanol (0 vol.%, 10 vol.%, 20 vol.% and 40 vol.%) were prepared through modified replica method. The mechanical properties were assessed through compression test and the structures of scaffolds were examined by Scanning Electron Microscope (SEM). Results show that, the increase in Mg-Zn powder to liquid media ratio (50 wt.% to 90 wt.%) in ethanol free slurry, increases the thickness of struts (37 µm to 74 µm) and the plateau stress (0.5 MPa to 1.4 MPa). The results obtained from X-ray Diffractometry (XRD) and compression test indicate that consuming ethanol in liquid media of replica, results in higher plateau stress by 46% due to less Mg-water reaction and no formation of Mg(OH)2 in the scaffold. The results of porosity measurement indicate that water-ethanol mixture composition and different solid fractions have no significant effects on true and apparent porosities of the fabricated scaffolds. © 2018, Jilin University.
Other Related Docs
14. Novel Electrospun Polyurethane Scaffolds Containing Bioactive Glass Nanoparticles, Bioinspired, Biomimetic and Nanobiomaterials (2020)
18. The Effect of the Nano- Bioglass Reinforcement on Magnesium Based Composite, Journal of the Mechanical Behavior of Biomedical Materials (2019)
